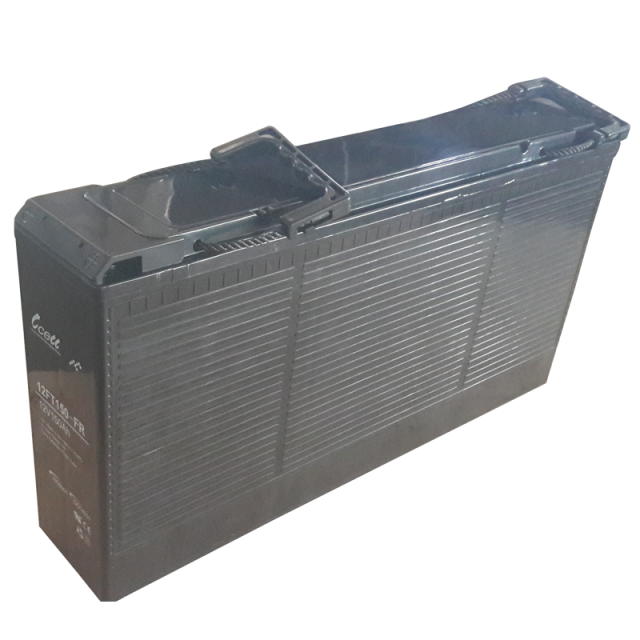

12V150Ah Front terminal Battery, Maintenance free Lead Acid Battery for Telecom
12V150Ah Front terminal Battery, Maintenance free Lead Acid Battery for Telecom
Quick Details:
Model Number: 12FT150(12V150Ah)
Dimension: 565*110*288*296
Certification: CE,UL,ISO14001,ISO9001
Weight: 44.3kg
OEM: Availble
Terminal: RT(M8)
Color: Black or Grey
Capacity: 150Ah
Sealed Type: Seald
Battery Type: Maintenance Free
Usage: DC power supply, UPS/EPS power supply, Electrical devices & instruments, Security and fire alarm systems, Telecom stations and power stations, Medical equipments, Emergency lighting systems
Lead Time:
Quantity(Pieces) | 1 - 50000 | >50000 |
Est. Time(working days) | 25~35 | To be negotiated |
Features and Benefits:
12V150Ah Front terminal Battery, Maintenance free Lead Acid Battery for Telecom
• Designed floating charging service life: 12 years (25ºC)
• Sealed and maintenance free operation
• Safety valve installation for explosion proof
• Low self-discharge characteristic
• Wide operating temperature range from 0ºC~40ºC
• Lead Aluminum calcium Tin alloy high energy, prevent corrosion
Specification:
NOMINAL VOLTAGE | : 12V |
NOMINAL CPACITY(10hr) | : 150Ah |
DIMENSIONS | |
TOTAL HEIGHT | :295mm ( 11.61 inches ) |
CONTAINER HEIGHT | :288mm ( 11.34 inches ) |
LENGTH | :565mm (22.24 inches) |
WIDTH | :110mm ( 4.33 inches) |
WEIGHT | : APPROX 44.0Kg ( 97.02 lbs) |
CONTAINER MATERIAL | : UL94V-0 ABS |
INTERNAL RESISTANCE | :Approx.4.0mΩ |
DESIGNED FLOATING LIFE(20°C) | :12 Years |
DISCHARGE CAPACITY UNDER DIFFERENT TEMPERATURES | |
40°C | : ~103% |
25°C | : ~100% |
0°C | : ~86% |
FT (Front Terminal) Series is specially designed for telecom use with 10+ years design life in float service. By adding lead aluminum calcium tin alloy high energy, which could prevent corrosion and safety valve installation for explosion proof.
It is specially designed for Telecom and UPS/EPS applications.
Applications:
• DC power supply
• UPS/EPS power supply
• Electrical devices & instruments
• Security and fire alarm systems
• Telecom stations and power stations
• Medical equipments
• Emergency lighting systems
Our advantages:
1. Specialized in batteries field more than 20 years, has plenty experiences of manufacturing and exporting.
2. Good quality battery with reasonable price. Comprehensive product system to meet customers' needs.
3. Capable to custom make for our customers according to their requirements.
