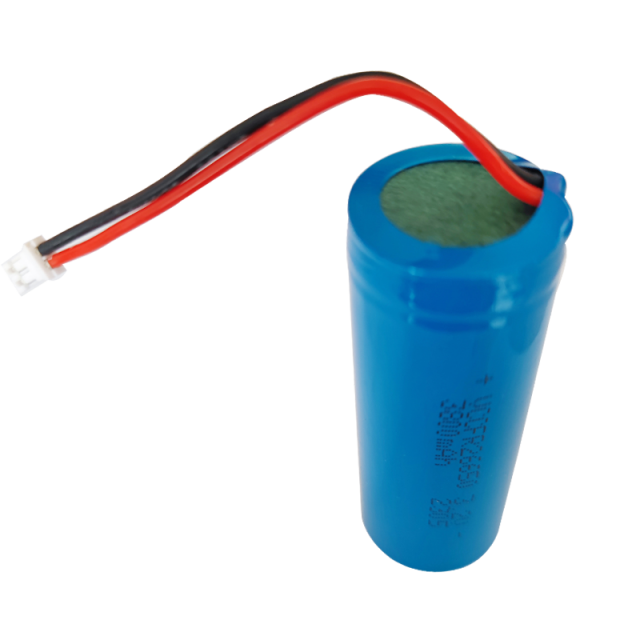

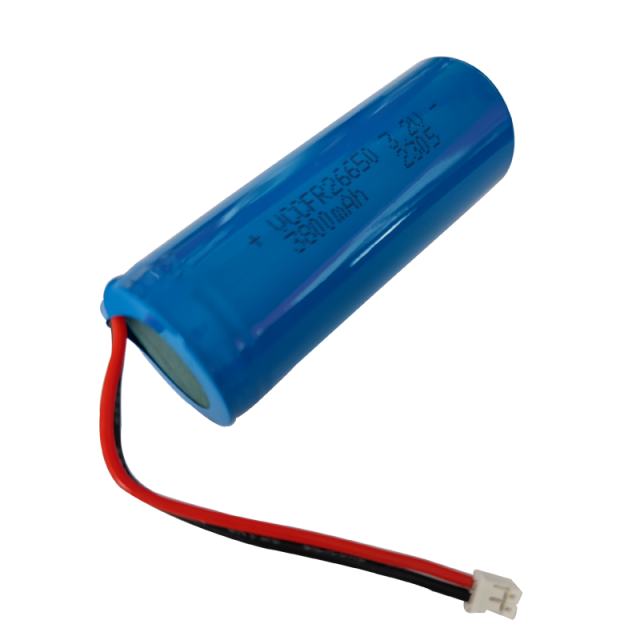

VCCFR26650-3800mAh-3.2V stackable hi-voltage ESS Lithium-ion Cell
  • VCCFR26650-3800mAh-3.2V stackable hi-voltage ESS Lithium-ion Cell
  • VCCFR26650-3800mAh-3.2V stackable hi-voltage ESS Lithium-ion Cell
  • VCCFR26650-3800mAh-3.2V stackable hi-voltage ESS Lithium-ion Cell

VCCFR26650-3800mAh-3.2V stackable hi-voltage ESS Lithium-ion Cell

VCCFR26650-3800mAh-3.2V Lithium-ion Cell
Recommendation Rate:

VCCFR26650-3800mAh-3.2V stackable hi-voltage ESS Lithium-ion Cell

1. Nominal Voltage 3.2V

2. High energy type

3. Energy Density up to 590Wh/kg

4. Stable Voltage

5. Long Shelf Life

6. Wide Operating Temperature

7. UL, UN38.3 and RoHS Certified

Quick Details

Battery Type : Lithium-ion Cell

Model Number : VCCFR26650

Standard Capacity : 3800 mAh

Minimum Capacity : 3750 mAh

Nominal Voltage : 3.2V

Weight : 87.5g

Certificate : UL/CE/UN38.3/RoHs

Long shelf life : more than 10 years

High energy density : single cell specific energy density up to 590wh/kg

Application : smart metering, Consumer Electronics, alarm systems

Shape : Cylindrical

Max.Continuous Discharge  Current : 11.4 A

Max. Charging Current : 3.8 A

Fast Discharge Current : 3.8 A

Lead Time:

Quantity(Pieces)

1 - 100000

>100000

Est. Time(working days)

7~25

To be negotiated

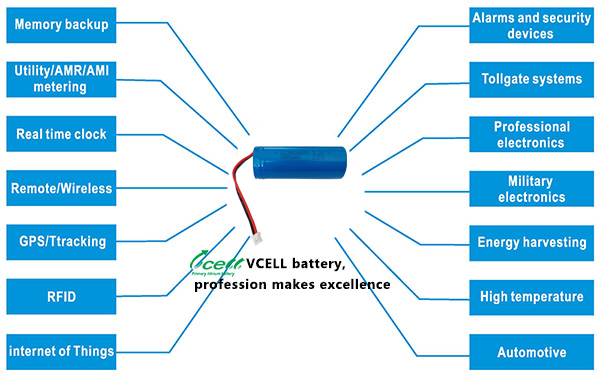

Applications:

• Security System

• Smart Metering

• RFID Devices

• GPS Tracking System

• Wireless Transmitting

• Smart Home Devices

• Military Devices



Specification:

ItemStandardNote
Standard Capacity3800 mAh0.2C,( current value of 3800 mA at 1C)
Minimum Capacity3750 mAh0.2C
Standard Voltage3.2 V
Alternating Internal Resistance≤ 20 mΩAC 1kHz measurement at 25±2℃
Standard ChargeCut-off Voltage3.65 Vconstant-current charge to 3.65 V at
0.5C, constant voltage charge to stop
until 0.01C mA.
Charge
Current
1.9 A
Cut-off
Current
38 mA
Max. Charging Current3.8 A
Standard DischargeDischarge
Current
1.9AConstant current discharge
Discharge Cut-off Voltage2.5A
Fast Discharge Current3.8A
Max. Continuous Discharge Current11.4 AOnly for single cell
Pulse Discharge Current20 A,5s
Cycle Characteristic2000 times(100%DOD)the residual capacity is no less than 80% of rated capacity at 1C rate.
4000 times(80%DOD)
7000 times(50%DOD)
Working TemperatureCharge:0℃~55℃
Discharge:-20℃~60℃
Storage Temperature-20℃~55℃< 1 months
-20℃~45℃< 3 months
-20℃~25℃< 12 months
Cell WeightApprox 87.5gIncluding casing


Our advantages:

1. Specialized in batteries field more than 20 years, has plenty experiences of manufacturing and exporting.

2. Good quality battery with reasonable price. Comprehensive product system to meet customers' needs.

3. Capable to custom make for our customers according to their requirements.
