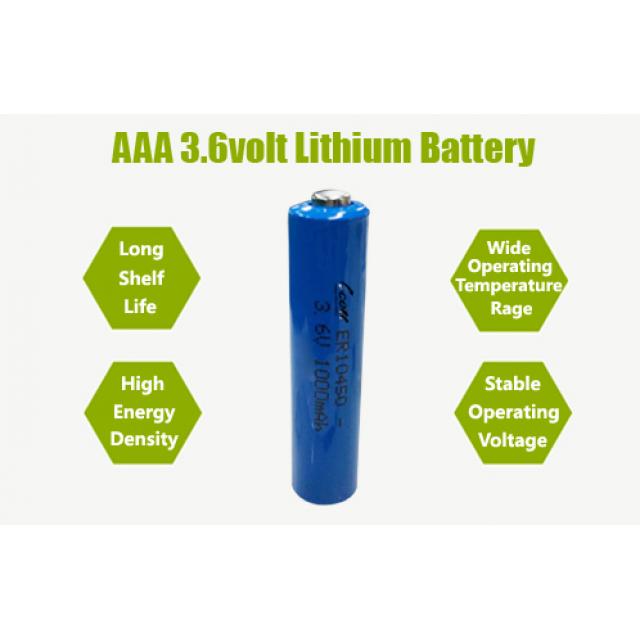

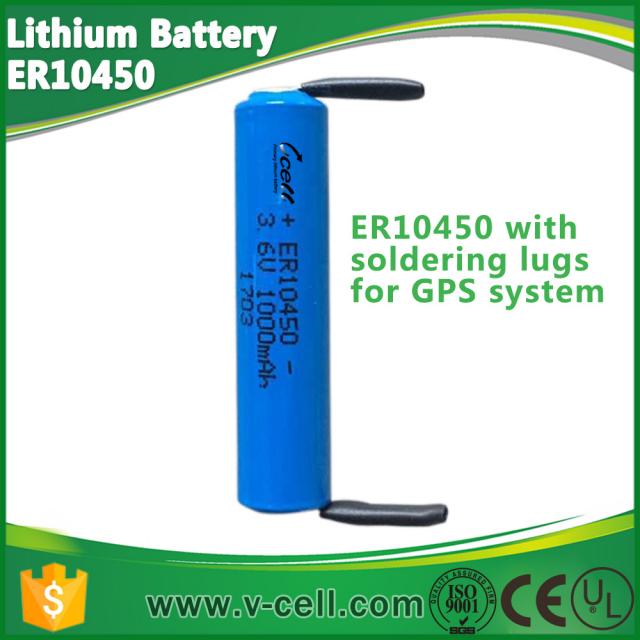

ER10450 Li-SOCL2 3.6V 1000mah AAA size Lithium Battery
ER10450 Li-SOCL2 3.6V 1000mah AAA size Lithium Battery
1. Nominal Voltage 3.6V
2. High energy type
3. Energy Density up to 590Wh/kg
4. Stable Voltage
5. Long Shelf Life
6. Wide Operating Temperature
7. UL, UN38.3 and RoHS Certified
Quick Details
Battery Type: LiSOCl2
Model Number: ER10450
Nominal Capacity:1000mAh
Nominal Voltage:3.6V
Size: AAA
Weight: 9g
Operating temperature:-55°C to +85°C
Certificate: UL/CE/UN38.3/RoHs
Long shelf life: more than 10 years
High energy density: single cell specific energy density up to 590wh/kg
Application: smart metering, Consumer Electronics, alarm systems
Shape: Cylindrical
Max.Continuous Current: 10mA
Max. Pulse Current: 20mA
Lead Time:
Quantity(Pieces) | 1 - 100000 | >100000 |
Est. Time(working days) | 7~25 | To be negotiated |
Applications:
• Security System
• Smart Metering
• RFID Devices
• GPS Tracking System
• Wireless Transmitting
• Smart Home Devices
• Military Devices
Specification:
| Cylindrical Battery (High Energy Type) | |||||||
| National Standard | International Standard | Maximum Appearance dimensions (mm) | Weight (g) | Nominal Voltage (V) | Rated Capacity | Max.Current(mA) | |
| (mA) | Continuous | Pulse | |||||
| ER10450 | AAA | Φ10.5X45.0 | 9 | 3.6 | 1000 | 10 | 20 |
Our advantages:
1. Specialized in batteries field more than 20 years, has plenty experiences of manufacturing and exporting.
2. Good quality battery with reasonable price. Comprehensive product system to meet customers' needs.
3. Capable to custom make for our customers according to their requirements.
