3.6V cc size ER261020 Li-Socl2 battery Oil and gas battery for Drilling
3.6V cc size ER261020 Li-Socl2 battery Oil and gas battery for Drilling
1. Nominal Voltage 3.6V
2. High energy type
3. Energy Density up to 590Wh/kg
4. Stable Voltage
5. Long Shelf Life
6. Wide Operating Temperature
7. UL, UN38.3 and RoHS Certified
Quick Details
Battery Type: LiSOCl2
Model Number: ER261020
Nominal Capacity: 16000mAh
Nominal Voltage:3.6V
Size: CC
Weight: 101g
Operating temperature:-55°C to +85°C
Certificate: UL/CE/UN38.3/RoHs
Long shelf life: more than 10 years
High energy density: single cell specific energy density up to 590wh/kg
Application: smart metering, Consumer Electronics, alarm systems
Shape: Cylindrical
Max.Continuous Current: 150mA
Max. Pulse Current: 300mA
Lead Time:
Quantity(Pieces) | 1 - 100000 | >100000 |
Est. Time(working days) | 7~25 | To be negotiated |

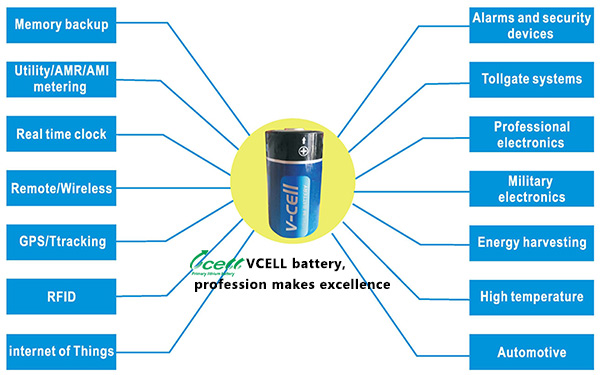

Applications:
• Security System
• Smart Metering
• RFID Devices
• GPS Tracking System
• Wireless Transmitting
• Smart Home Devices
• Military Devices
Specification:
| Li-SOCl2 Battery Datasheet | |||||||
| Cylindrical Battery (High Energy Type) | |||||||
| National Standard | International Standard | Maximum Appearance dimensions (mm) | Weight (g) | Nominal Voltage (V) | Rated Capacity | Max.Current(mA) | |
| (mA) | Continuous | Pulse | |||||
| ER261020 | CC | Φ26.2X102.0 | 101 | 3.6 | 16000 | 150 | 300 |
Our advantages:
1. Specialized in batteries field more than 20 years, has plenty experiences of manufacturing and exporting.
2. Good quality battery with reasonable price. Comprehensive product system to meet customers' needs.
3. Capable to custom make for our customers according to their requirements.
