ER341245 3.6V 36Ah large capacity Lithium Battery for IOT smart water meter
ER341245 3.6V 36Ah large capacity Lithium Battery for IOT smart water meter
1. Nominal Voltage 3.6V
2. High energy type
3. Energy Density up to 590Wh/kg
4. Stable Voltage
5. Long Shelf Life
6. Wide Operating Temperature
7. UL, UN38.3 and RoHS Certified
Quick Details
Battery Type: LiSOCl2
Model Number: ER261020
Nominal Capacity: 16000mAh
Nominal Voltage:3.6V
Size: DD
Weight: 200g
Operating temperature:-55°C to +85°C
Certificate: UL/CE/UN38.3/RoHs
Long shelf life: more than 10 years
High energy density: single cell specific energy density up to 590wh/kg
Application: smart metering, Consumer Electronics, alarm systems
Shape: Cylindrical
Max.Continuous Current: 300mA
Max. Pulse Current: 600mA
Lead Time:
Quantity(Pieces) | 1 - 100000 | >100000 |
Est. Time(working days) | 7~25 | To be negotiated |

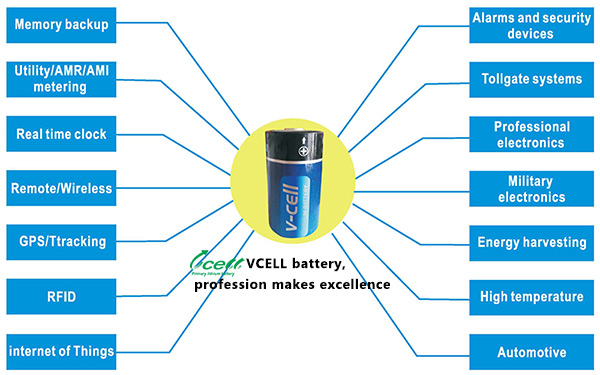

Applications:
• Security System
• Smart Metering
• RFID Devices
• GPS Tracking System
• Wireless Transmitting
• Smart Home Devices
• Military Devices
Specification:
| Li-SOCl2 Battery Datasheet | |||||||
| Cylindrical Battery (High Energy Type) | |||||||
| National Standard | International Standard | Maximum Appearance dimensions (mm) | Weight (g) | Nominal Voltage (V) | Rated Capacity | Max.Current(mA) | |
| (mA) | Continuous | Pulse | |||||
| ER341245 | DD | Φ34.2X124.5 | 200 | 3.6 | 36000 | 300 | 600 |
Our advantages:
1. Specialized in batteries field more than 20 years, has plenty experiences of manufacturing and exporting.
2. Good quality battery with reasonable price. Comprehensive product system to meet customers' needs.
3. Capable to custom make for our customers according to their requirements.
