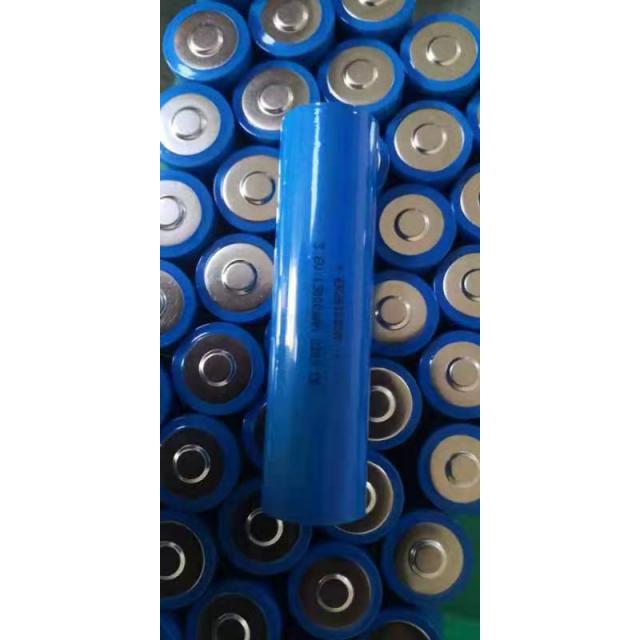

ER261020M 3.6V 13000MAH HIGH POWER TYPE LI-SOCL2 BATTERY
ER261020M 3.6V 13000mAh high power type Li-SOCl2 Battery
1. Nominal Voltage 3.6V
2. High energy type
3. Energy Density up to 590Wh/kg
4. Stable Voltage
5. Long Shelf Life
6. Wide Operating Temperature
7. UL, UN38.3 and RoHS Certified
Quick Details:
Battery Type: LiSOCl2
Model Number: ER261020M
Nominal Capacity: 13000mAh
Nominal Voltage:3.6V
Cell size references:CC
Weight: 105g
Operating temperature:-40°C to +85°C
Certificate: UL/CE/UN38.3/RoHs
Long shelf life: more than 10 years
High energy density: single cell specific energy density up to 590wh/kg
Application: smart metering, Consumer Electronics, alarm systems
Shape: Cylindrical
Max.Continuous Current: 1000mA
Max. Pulse Current: 2000mA
Lead Time:
Quantity(Pieces) | 1 - 100000 | >100000 |
Est. Time(working days) | 7~25 | To be negotiated |

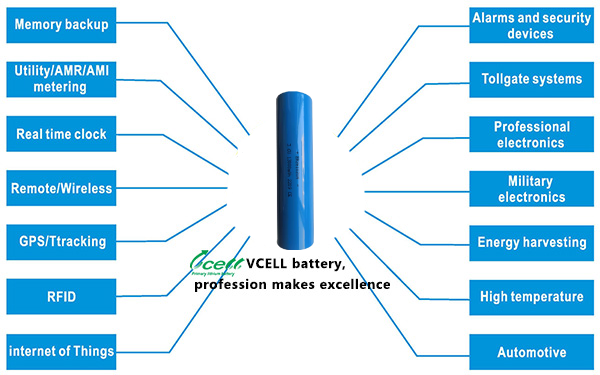

Applications:
• Security System
• Smart Metering
• RFID Devices
• GPS Tracking System
• Wireless Transmitting
• Smart Home Devices
• Military Devices
Specification:
| Li-SOCl2 Battery Datasheet | |||||||
| Cylindrical Battery (High Energy Type) | |||||||
| National Standard | International Standard | Maximum Appearance dimensions (mm) | Weight (g) | Nominal Voltage (V) | Rated Capacity | Max.Current(mA) | |
| (mA) | Continuous | Pulse | |||||
| ER261020M | CC | φ26.2×102.0mm | 105 | 3.6 | 13000 | 1000 | 2000 |
Our advantages:
1. Specialized in batteries field more than 20 years, has plenty experiences of manufacturing and exporting.
2. Good quality battery with reasonable price. Comprehensive product system to meet customers' needs.
3. Capable to custom make for our customers according to their requirements.
