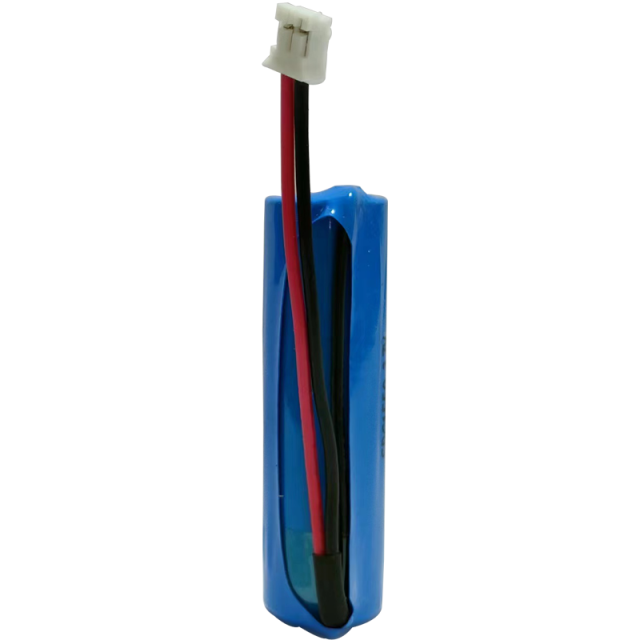

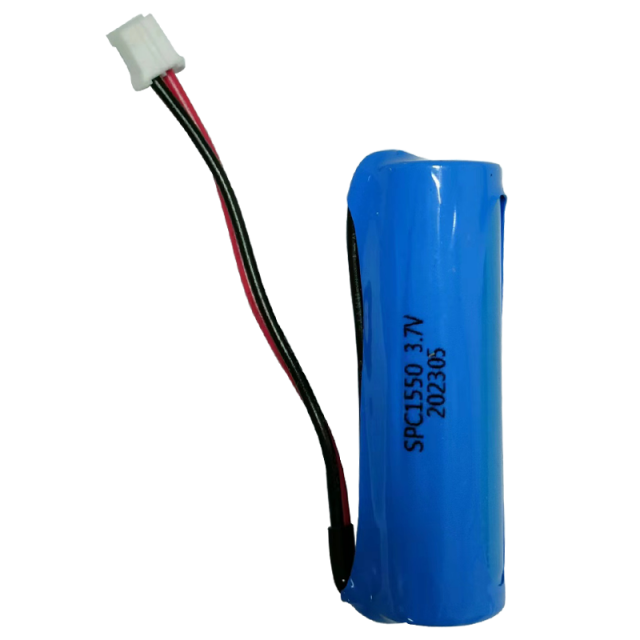

SPC1550 Super Capacitor with wires and connector LITHIUM BATTERY
SPC1550 Super Capacitor with wires and connector Lithium Battery
1. Nominal Voltage 3.7V
2. High energy type
3. Energy Density up to 590Wh/kg
4. Stable Voltage
5. Long Shelf Life
6. Wide Operating Temperature
7. UL, UN38.3 and RoHS Certified
Quick Details
Alternative models : HLC-1550
Nominal capacity(At +23℃,charge to 3.67V) : 560A*Sec
Nominal Voltage : 3.7V
Discharge end voltage : 2.8V
Max. charge voltage : 3.95V
Max. charging current : 100mA
Typical Max. pulse current（20℃）: 4000mA
Lead Time:
Quantity(Pieces) | 1 - 100000 | >100000 |
Est. Time(working days) | 7~25 | To be negotiated |

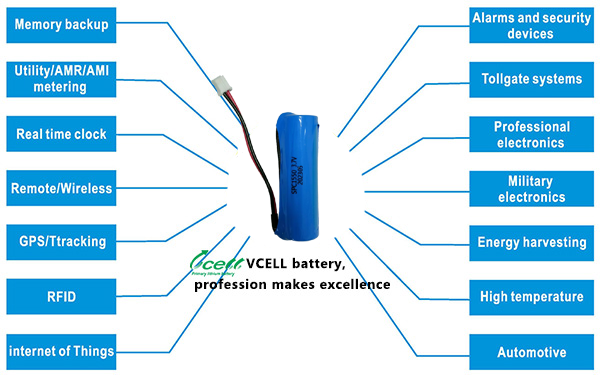

Applications:
• Security System
• Smart Metering
• RFID Devices
• GPS Tracking System
• Wireless Transmitting
• Smart Home Devices
• Military Devices
Specification:
| Alternative models | HLC-1550 | |
| Nominal capacity(At +23℃,charge to 3.67V) | 560A*Sec | |
| Equivalent capacitance(At +23℃,charge to 3.67V) | 100F | |
| Discharge end voltage | 2.8V | |
| ESR（at RT @1KHz） | 150mΩ | |
| Max. charge voltage | 3.95V | |
| Max. charging current | 100mA | |
| Typical Max. pulse current（20℃） | 4000mA | |
| Self discharge current | At RT | 3µ |
| At 80℃ | 15µ | |
| Cycle life(charge to 3.67V) | 100%DOD | 4000 |
| 10%DOD | 40000 | |
| 1%DOD | 400000 | |
| Storage(recommended) | +30℃ Max | |
| Operating temperature range | -40~+80℃ | |
| Dimension(Max) | ф14.5×50.0mm | |
| Typical weight | 20g | |
Our advantages:
1. Specialized in batteries field more than 20 years, has plenty experiences of manufacturing and exporting.
2. Good quality battery with reasonable price. Comprehensive product system to meet customers' needs.
3. Capable to custom make for our customers according to their requirements.
