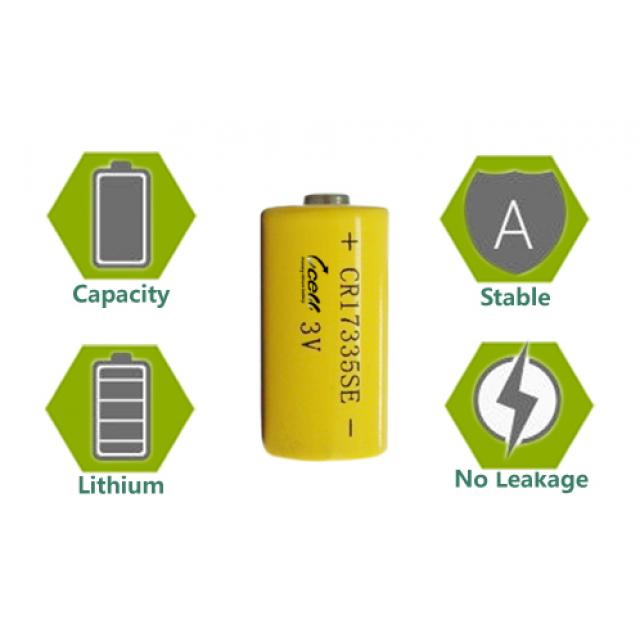

Li-MnO2 Battery CR17335SE 3.0V Lithium Battery for Smoke Detector
Li-MnO2 Battery CR17335SE 3.0V Lithium Battery for Smoke Detector
1. Nominal Voltage 3.0V
2. High energy type
3. Energy Density up to 260Wh/kg
4. Long Storage Life
5. Wide Operating Temperature
6. UL, UN38.3 and RoHS Certified
Quick Details
Battery Type: Li-MnO2 Battery
Model Number: CR17335SE
Nominal Capacity: 1800mAh
Nominal Voltage:3.0V
Weight: 22g
Operating temperature:-40°C to +70°C
Certificate: UL/CE/UN38.3/RoHs
Long shelf life: more than 10 years
High energy density: single cell specific energy density up to 260Wh/kg
Application: smart metering, Consumer Electronics, alarm systems
Shape: Cylindrical
Max.Continuous Current: 10mA
Max. Pulse Current: 100mA
Lead Time:
Quantity(Pieces) | 1 - 100000 | >100000 |
Est. Time(working days) | 7~25 | To be negotiated |
Applications:
• Security System
• Smart Metering
• RFID Devices
• GPS Tracking System
• Wireless Transmitting
• Smart Home Devices
• Military Devices
Characteristics:
1. High Voltage
Single cell nominal voltage up to 3.0V
2. High Energy Density
Single cell specific energy density up to 260Wh/kg
3. Wide Operating Temperature Range
From -40°C to +70°C
4. Long Storage Life
• Self discharge rate less than 2% per year at room temperature
• High capacity, stable, excellent resistance to passivation
• Hermetic laser welded sealing, no leakage problems, shelf life up to 10 years and more
• Excellent safety record, high reliability, environmental friendly
Specification:
| Model | Nominal Voltage | Max.Dimensions | Weight | Rated Capacity | Standard Discharge current(mA) | Max.Current(mA) | |
| (V) | (φmm×mm) | (g) | (mAh) | Continuous | Pulse | ||
| CR17335SE | 3.0 | 17.0×33.5 | 22 | 1800 | 1 | 10 | 100 |
Our advantages:
1. Specialized in batteries field more than 20 years, has plenty experiences of manufacturing and exporting.
2. Good quality battery with reasonable price. Comprehensive product system to meet customers' needs.
3. Capable to custom make for our customers according to their requirements.
