QH-80, QH-100, QH-120 Solar Street Light
Quick Details:
Model: QH-80, QH-100, QH-120
Installation Height: 7-12M
Installation Distance: 30-40M
Color Temperature: 3000-7500K
Feature and Benefits:

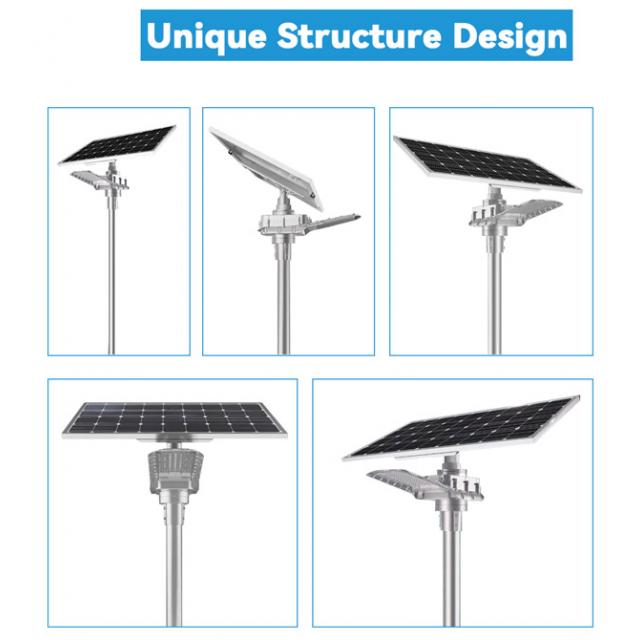

• Unique Structure Design
The solar panel and light body are integrated.Very easy to install and no need other rack to support.
• Rotating Solar Panel
The angle of the solar panel facing the sun can be freely adjusted.
• Lighting Efficiency Upgraded
Upgraded to 140pcs of Led chips, lighting efficiency exceeds 180lm/W.
• Charge and Discharge Management
BMS can protect Lithium battery effectively and extend the battery life over 2000 cycles.
• IPC 5.0 Technology
Five-stage intelligent algorithm can achieve perfect balance between brightness and discharge time.
• Patent Bat-wing Lens
Special designed lens can illuminate area do--uble than common product.
Application:
Specification:
Model | QH-80 | QH-100 | QH-120 | |
Solar Panel | Voltage/Power | Mono 18V/100W | Mono 18V/120W | Mono 18V/150W |
Lithium Battery | Capacity | 120AH | 150AH | 180AH |
Life Span | 2000 Cycles | |||
LED Chips | 140 Pcs | |||
LED Life Span | 50000 hours | |||
Luminous Flux | 12000lm | 14000lm | 18000lm | |
Installation Height | 7-12M | |||
Installation Distance | 30-40M | |||
Color Temperature | 3000-7500K |
