XH-50, XH-80, XH-100, XH-120 Solar Street Light
Quick Details:
Model: XH-50, XH-80, XH-100, XH-120
LED Life Span: 50000 hours
Color Temperature: 3000-7500K
Feature and Benefits:

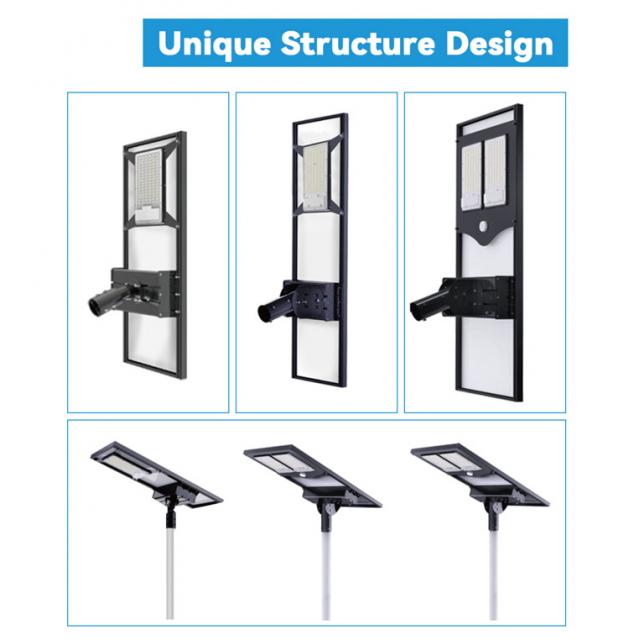

• Integrated Structure Design
The solar panel and light body are integrated.Very easy to install and no need other rack tosupport.
• Upgraded Lighting Efficiency
Intelligent high-efficiency LED chips, lighting efficiency exceeds 160lm/W.
• Intelligent Charge and Discharge Management
BMS can protect Lithium battery effectively and extend the battery life over 2000 cycles.
• IPC 5.0 Technology
Five-stage intelligent algorithm can achieve perfect balance between brightness and battery power.
• Patent Bat-wing Lens
Special designed lens can illuminate area double than common product.
• Battery Power Indicator
Supervise the battery status at any time.
• Rotating Angle Design
The angle of the solar panel facing the sun and the angle of the illumination facing the road can be freely adjusted.

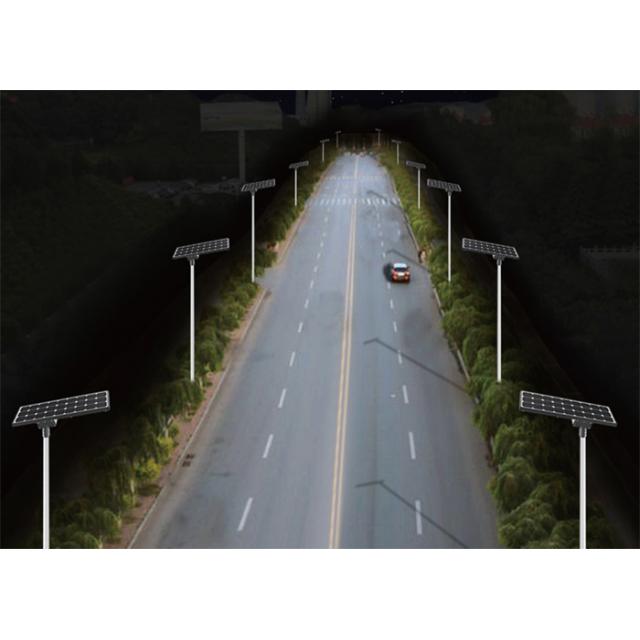

Application:
Specification:
Model | XH-50 | XH-80 | XH-100 | XH-120 | |
Solar Panel | Voltage/Power | 5V60W | 18V80W | 18V110W | 18V110W |
Lithium Battery | Capacity | 80AH | 120AH | 200AH | 240AH |
Life Span | 2000 Cycles | ||||
LED Chips | 100PCS | 140CPS | 280PCS | 280PCS | |
LED Life Span | 50000 hours | ||||
Luminous Flux | 7000lm | 10000lm | 15000lm | 18000lm | |
Installation Height | 6-8M | 6-8M | 8-10M | 8-10M | |
Installation Distance | 25-35M | 25-35M | 30-40M | 30-40M | |
Color Temperature | 3000-7500K |
