25.6V100Ah Lithium Ion Battery For Solar Storage System
  • 25.6V100Ah Lithium Ion Battery For Solar Storage System
  • 25.6V100Ah Lithium Ion Battery For Solar Storage System
  • 25.6V100Ah Lithium Ion Battery For Solar Storage System

25.6V100Ah Lithium Ion Battery For Solar Storage System

LiFePO4 Battery
Recommendation Rate:

25.6V100Ah Lithium Ion Battery, LiFePO4 Battery For Solar Storage System

Features:

•Lithium Iron Phosphate (LiFePO4): the Safest Lithium Technology.

•Integrated Battery Management System(BMS).

•Bluetooth/RS485/RS232/SMBus/CANBus (Optional). SOC LED/LCD Indicator(Optional).


Performances:

•Long Cycle Life>2000cycles @100% DOD.

•High Density, High Discharge Current, High Temperature Range.

•Low Weight, Free Maintenance.

•Fast Charging.

•Environment Friendly.


Applications:

•Data Center UPS

•Telecom Backup Power

•Military Power Supply

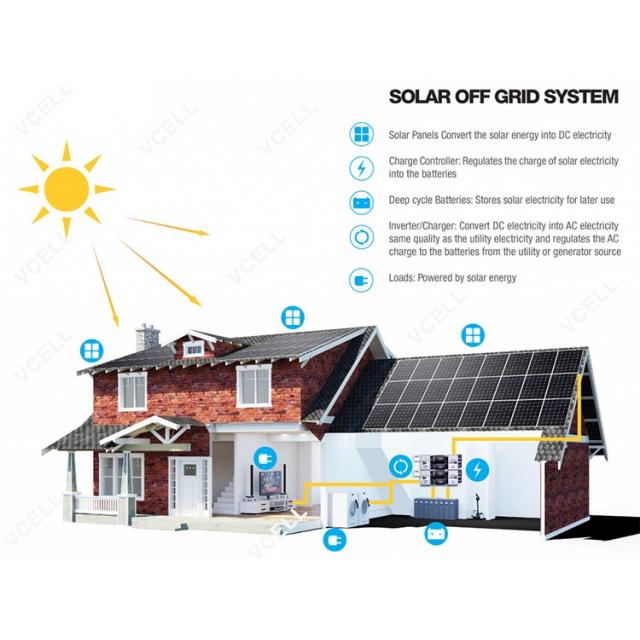

•Solar Energy Storage System

•Solar Street LED Lightings

•Autonomously Guided Vehicles (AGVs)

•Industrial Robotics & Handling Equipment

•Aerial Work Platform

•Floor Cleaning Machines

•Power Tools, Lawn Mower

•Electric Bike & Motorcycles

•Electric Mobilities( E-scooters,Wheelchair)

•Golf Trolley & Golf Carts

•Medical Devices

•Electric Ships

•Passenger Vehicles

Battery Data Sheet

Electrical Parameters

Nominal Voltage

25.6V

Rated Capacity

100Ah

Energy

2560Wh

Resistance

30mΩ

Efficiency

99%

Cycle Life

>2000cycles @1C,100% DOD

Self Discharge

2% per Month

Max. Modules in Series/Parallel

2S/20P

Mechanical Parameters

Dimension(L x W x H)

522x 240x 224 mm

20.6 x 9.4x 8.8"

Weight

29.6kg(65.26lbs)

Terminal Type

M8

Battery Housing

ABS, UL-94 V-0

Housing Protection

IP56

Cell Type-Chemistry

LiFePO4 Cylindrical Cell

SOC Display(Optional)

LED/LCD Indicator

Discharge Parameters

Continuous Discharge Current

100A

Pulse Discharge Current

300A(>3 seconds)

Recommended Volt. Disconnect

20V

BMS Discharge Cut-off Voltage

16V

Reconnect Voltage

18.4V

Short Circuit Protection

200~600 us

Charge Parameters

Charge Method

CC-CV

Charge Voltage

28.8~29.6V

Recommended Float Voltage

27.6V

Recommended Charge Current

50A

Maximum Charge Current

100A

BMS Charge Cut-off Voltage

31.2V


Temperature Parameters

Discharge Temperature

-30 to 60℃ (-22 to 140℉)

Charge Temperature

0 to 45℃ (32 to 113℉)

Storage Temperature

-40 to 60℃(-40 to 140℉)

BMS High Temperature Cut-off

80℃(176℉)
