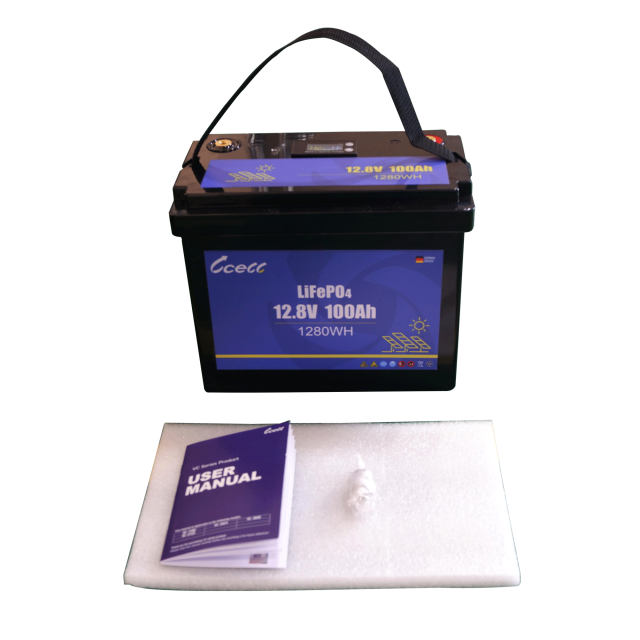

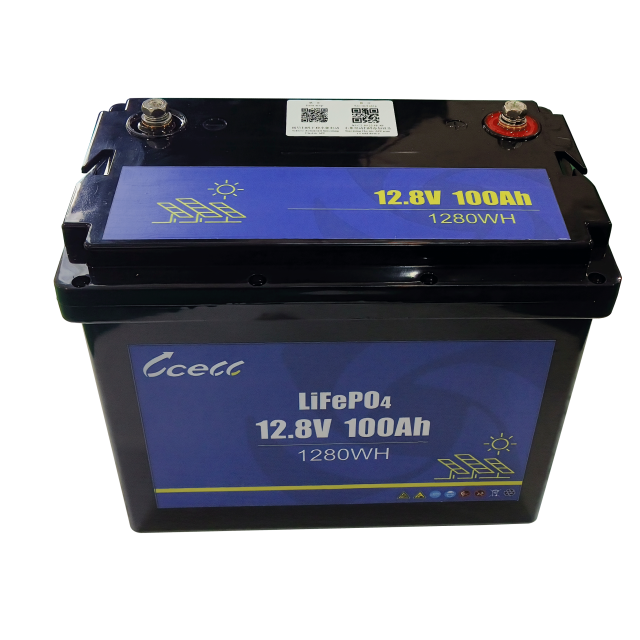

LITHIUM BATTERY MODULE – 12.8V100Ah
The 12.8V 100Ah lithium battery is a compact and high-performance LiFePO4 energy storage solution designed for solar systems, RVs, and outdoor power applications. With superior Grade A cells and an intelligent BMS, it delivers stable power output, excellent safety, and an ultra-long cycle life. Its lightweight design, IP65 protection, and flexible series/parallel capability make it an ideal replacement for traditional lead-acid batteries in both residential and mobile energy systems.
FEATURES:
* Superior Grade A LiFePO4 battery cells
* Over 6000 cycles @ 100% DOD
* Intelligent BMS with multiple protection functions
* IP65 protection grade, suitable for outdoor use
* Supports series and parallel connections
* Optional top-cover LCD display or Bluetooth monitoring
* Certified with CE, UL, UN38.3, IEC
APPLICATIONS:
Solar Systems, RVs, Outdoor Power Supply, Portable Energy Storage, Backup Power, etc.
SERIES CONNECTION:
Supports series connection to increase system voltage.
PARALLEL CONNECTION:
Supports parallel connection to increase total capacity.
SPECIFICATIONS:
| Model | 12.8V100AH | |
| Nominal capacity | 100Ah | |
| Nominal energy | 1280Wh | |
| Nominal voltage | 12.8V | |
| Internal resistance | ≤18mΩ @ 1kHz AC | |
| Charge voltage | 14.6V | |
| Float charge voltage | 14.4 ± 0.2V | |
| Max. charge current | 100A | |
| Recommended charge current | ≤50A | |
| Max. discharge current | 100A | |
| End of discharge voltage | 10.8V | |
| Cycle life | ≥6000 cycles @ 100% DOD, 0.2C | |
| Dimension | Length | 260±2mm |
| Height | 212±2mm | |
| Depth | 170±2mm | |
| Weight | Approx. 10kg | |
Operation temperature | Charge | from 0℃ to 45℃ |
| Discharge | from -20℃ to 60℃ | |
| Terminal Size | M8 | |
Advantages:
* Extremely long cycle life compared with lead-acid batteries
* Lightweight and compact, easy to install and transport
* High safety level with intelligent BMS protection
* Excellent environmental adaptability (IP65)
* Flexible system expansion via series/parallel connection
