LITHIUM BATTERY MODULE-UT1344A (12.8V105AH)
The UT1344A (12.8V105AH) delivers superior performance and reliability for various applications, including renewable energy systems, backup power, and off-grid setups. With high energy density and extended cycle life, it ensures consistent power delivery and long-term savings. Its compact and lightweight design facilitates easy installation and maintenance, while advanced safety features provide peace of mind. This versatile module is a dependable choice for diverse energy storage needs.
FEATURES :
* HIGH ENERGY DENSITY;
* SUPERIOR GRADE A LITHIUM CELLS;
* OVER 4000 CYCLES @100% DOD;
* ITELLIGENT BMS WITH MULTIPLE PROTECTIONS ENSURES THE EXTREME SAFETY;
* IP65 PROTECTION GRADE;
* INCREASE CAPACITY AND VOLTAGE THROUGH PARALLEL AND SERIES CONNECTIONS;
* UL, CE, UN38.3, IEC CERTIFICATED.
APPLICATIONS :
SOLAR, RVS, OUTDOOR POWER SUPPLY, ETC.

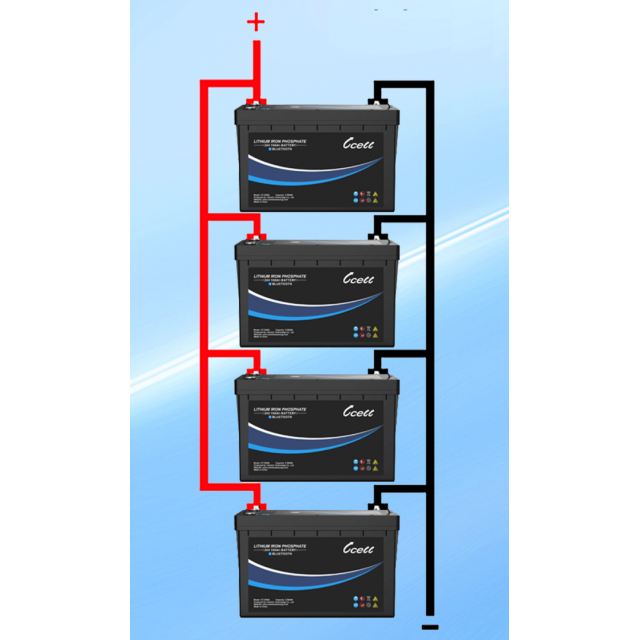

PARALLEL CONNECTION：
The battery supports up to 4 identicalbatteries for parallel use.

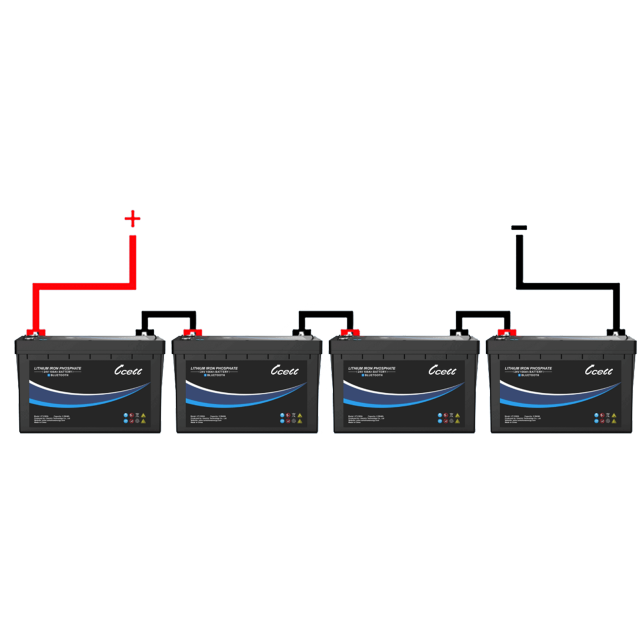

SERIES CONNECTION：
The battery supports up to 2 or 4 identicalbatteries in series.
SPECIFICATION：
| LITHIUM BATTERY TYPE | LITHIUM IRON PHOSPHATE BATTERY |
| MODEL | UT1344A(12.8V105AH) |
| RATED VOLTAGE | 12.8V, 4CELLS IN SERIES |
| RATED CAPACITY | 105AH @ 0.2C |
| ENERGY | 1.344KWH |
| CHARGING CUT-OFF VOLTAGE | 14.6V |
| DISCHARGING CUT-OFF VOLTAGE | 10.8V |
| CYCLE LIFE | >4000 CYCLES @ 100% DOD; >6000 CYCLES @ 80% DOD; >10000 CYCLES @ 50%DOD. |
| MONTHLY SELF-DISCHARGE | <2% |
MAX. CHARGING & DISCHARGE CURRENT | 100A |
| FAST CHARGE | >80 % CAPACITY CAN BE CHARGED IN 2 HOURS |
| CHARGE TEMPERATURE | FROM O℃ TO 60℃ |
| DISCHARGE TEMPERATURE | FROM -20℃ TO 60℃ |
| PROTECTION LEVEL | IP65 |
| HUMIDITY | FROM 10% TO 95%RH |
| ALTITUDE | <3000M |
| DIMENSION | 330 × 172 × 214 MM |
| TERMINAL AND SCREWS | M8 × 12MM |
| NET WEIGHT | 11.5KG |
| COLOR | BLACK |
