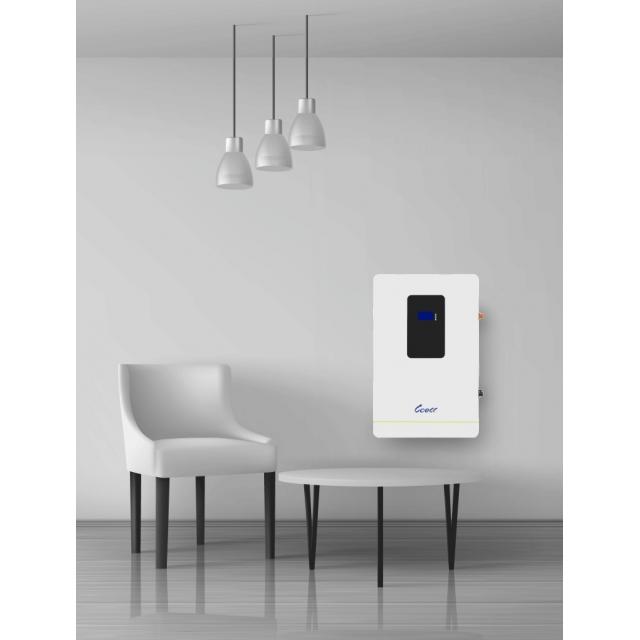

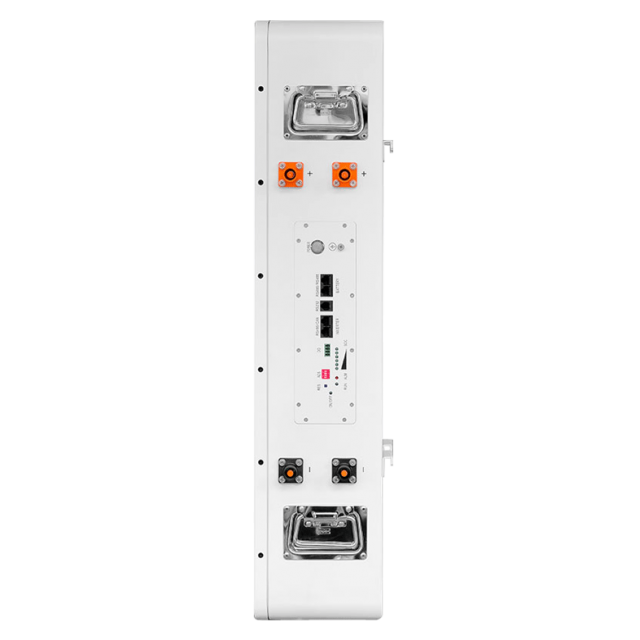

WALL-MOUNTED LITHIUM BATTERY – 51.2V200AH
The 51.2V 200Ah wall-mounted LiFePO4 battery pack is a high-capacity energy storage solution designed for home and commercial systems. Featuring safe LiFePO4 chemistry, intelligent cell balancing, and a smart BMS, it ensures stable performance and long service life. With RS485 and CAN communication, it is compatible with most mainstream inverters, offering a powerful and quiet energy storage option.
FEATURES:
* Safe and stable LiFePO4 battery chemistry
* Intelligent Cell Balancing for Full Capacity & Longer Lifespan
* Built-in smart BMS for full protection
* Compatible with mainstream inverters via RS485 / CAN
* Wall-mounted compact design with IP20 protection
* Fan-less natural cooling for quiet and reliable operation
APPLICATIONS:
Home energy storage systems, residential solar systems, backup power supply, off-grid and hybrid systems.
SPECIFICATION：
| Battery Type | LiFePO4 | |
| Cell Type | 3.2V 100Ah LFP | |
| Cell Configuration | 16S2P | |
| Nominal Voltage | 51.2V | |
| Normal Capacity | 200Ah | |
| Nominal Energy | 10.24KWh | |
| Charge Voltage | 58.4VDC | |
| Voltage Range | 43.2–58.4VDC | |
| Max Charge Current | 100ADC | |
| Max Discharge Current | 150ADC | |
| Recommended Charge Current | ≤100ADC | |
| End of Discharge Voltage | 43.2VDC | |
| Self-Discharge Rate | ≤3% per month | |
| Communication Method | RS485、CAN | |
| Display Language | English | |
Operation temperature | Charge | 0～55℃ |
| Discharge | -20～60℃ | |
Storage environment | ≤1month | -20～+60℃、5～75%RH |
| ≥3month | -10～+45℃、5～75%RH | |
Recommend environment | 15～35℃、5～75%RH | |
| Dimension | 781 (H) × 541 (W) × 184 (D) mm | |
| Weight(N.W/G.W) | About 82KG / 95KG | |
| IP Rating | IP20 | |
| Cooling Method | Natural Cooling | |
Advantages:
* High capacity and energy (10.24kWh) in a single unit
* Supports high discharge current (150A max) for demanding loads
* Wide operating temperature range for various environments
* Excellent inverter compatibility via RS485 / CAN communication
* Silent operation with fan-less natural cooling design
* Space-saving wall-mounted installation
