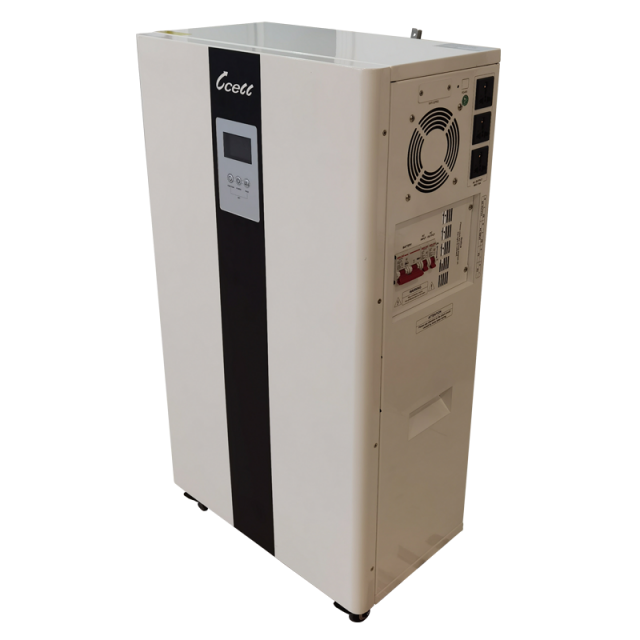

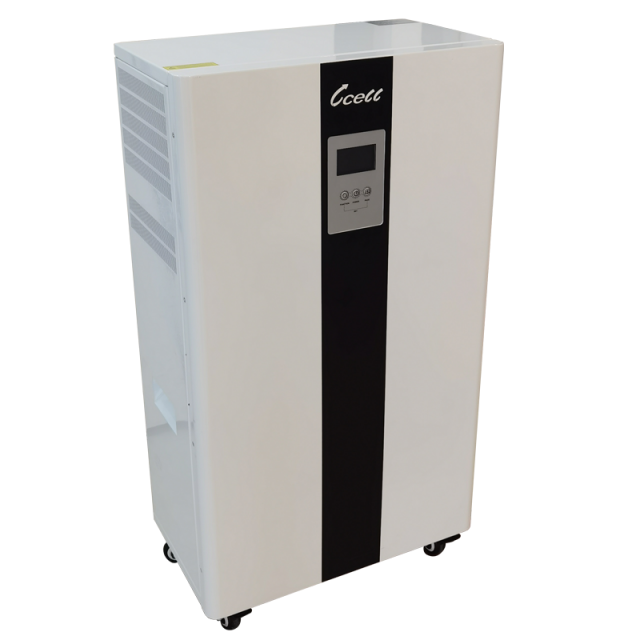

SOLAR HOME ESS 2.0
All in One,2KW AC Output + 2.5KWH Lithium battery
Quick Details:
Model: VHESS2.0
Battery Cycle Life: >4000times@100%DOD
PV Input Voltage: 150V
AC Input Current: 0-30A
AC Output Terminal: 1pc
AC Output Voltage: 220VAC±2%
Protection Level: IP20
Feature and Benefits:
• Just plug and play;
• All data are showed on the touch screen, hi-tech and easy operation;
• All connection inside, super safe;
• Class A+ Lithium battery cell, super long service life;
• 2 AC output plugs + 1 set AC output terminal, support various appliances working;
• PV input + AC input double ensure customer consumption no interruption;
• Patented appearance design, perfectly integrated into the house;
• Universal wheels with fixing devices can be easily moved to any place indoor.
Specifictaion:
Model | VHESS2.0 |
Output Power | 2KW |
Output Voltage | 25.6V |
LiFePO4 Battery Power | 2.56KWH |
Battery Cycle Life | >4000times@100%DOD |
Charge Cut-off Voltage | 28.8V |
Discharge Cuf-off Voltage | 16V |
PV Input Voltage | 150V |
PV Input Current (MPPT built-in) | 50A |
PV Max. Input Power | 1400W |
AC Input Current | 0-30A |
AC Input Voltage | from 170VAC to 275VAC (220VAC) |
AC Output Socket | 10A x 2pcs |
AC Output Terminal | 1pc |
AC Output Voltage | 220VAC±2% |
Communication Interface | RS485 (built-in) |
Protection Level | IP20 |
Net Weight | 50kg |
Dimension | 500 x 280 x 900 mm |
