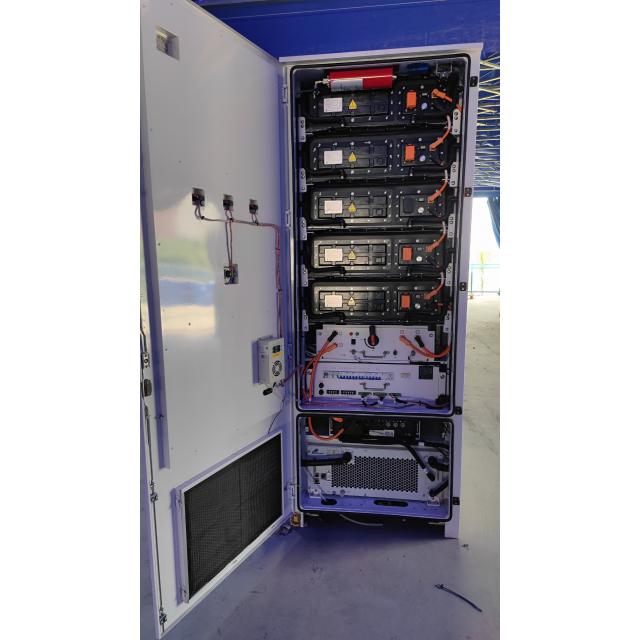

ALL-IN-ONE ESS OUTDOOR CABINET—LIQUID-COOLING
100kW AC Output with 230kWh Liquid-Cooled Energy Storage System
Recommendation Rate：
The ALL-IN-ONE ESS OUTDOOR CABINET—LIQUID-COOLING provides 100kW AC output and 230kWh energy storage, ideal for commercial and industrial use.
FEATURES：
* LONG CYCLE LIFE, OVER 10 YEARS
* SUPPORT PARALLEL CONNECTION
* SUPPORT DIGITAL INSPECTION, REMOTE AND UPGRADE
* EMS (ENERGY MANAGEMENT SYSTEM) MANAGES AND CONTROLS THE STABLE OPERATION OF THE ESS
* LIQUID-COOLING SYSTEM
* AEROSOL FIRE EXTHINGUISHING SYSTEM
* ANTI-RUST, ANTI-CORROSION, ANTI-SALT SPRAY
APPLICATIONS：
ENERGY STORAGE SYSTEM FOR COMMERCIAL AND INDUSTRIAL USE.
SPECIFICATION：
| DC SIDE | CELL MODEL | 3.2V280AH, LiFePO4 |
| CONFIGURATION | 1P260S | |
| NORMINAL CAPACITY | 280AH | |
| NORMINAL VOLTAGE | 832V | |
| OPERATING VOLTAGE RANGE | FROM 728V TO 936V | |
| RATED ENERGY | 232.96KWH | |
NORMINAL CHARGE AND DISCHARGE POWER | 100KW | |
| SOC AVAILABLE RANGE | FROM 5% TO 95% | |
| AC SIDE | NORMINAL OUTPUT POWER | 100KW |
| NORMINAL GRID VOLTAGE | 400V(3P4W) | |
| GRID VOLTAGE RANGE | FROM 360V TO 440V | |
| NORMINAL GRID FREQUENCY | 50/60Hz | |
AC CURRENT HARMONICS (GRID-CONNECTED) | S3% (RATED POWER) | |
| THDu(OFF-GRID) | ≤3% (LINEAR LOAD) | |
| POWER FACTOR | FROM -0.99 TO +0.99 | |
| ESS | DIMENSION | 952x1300x2500 mm |
| WEIGHT | 2400kg | |
| IP PROTECTION LEVEL | IP54 | |
| CORROSION PROTECTION LEVEL | C3 | |
| OPERATING TEMPERATURE RANGE | FROM -30°C TO 55°C | |
| WORKING ALTITUDE | ≤3000M | |
| THERMAL MANAGEMENT MODE | LIQUID COOLING | |
| FIRE PROTECTION SYSTEM | AIROSOL | |
| METHODS OF COMMUNICATION | RS485, ETHERNET |
