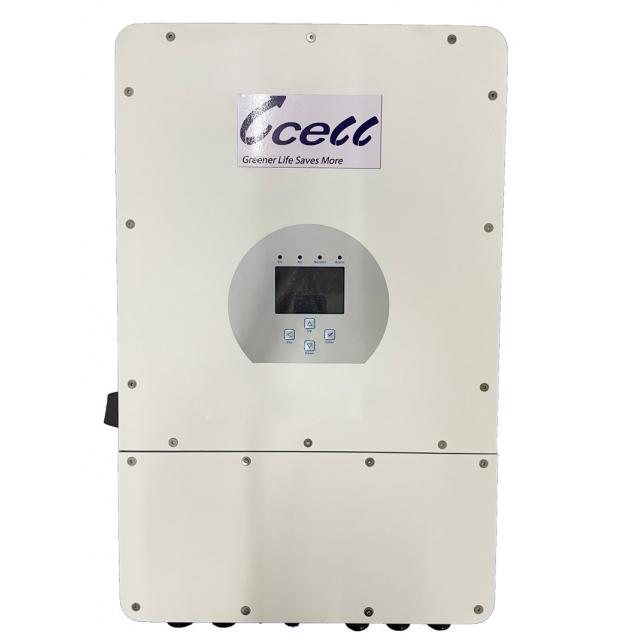

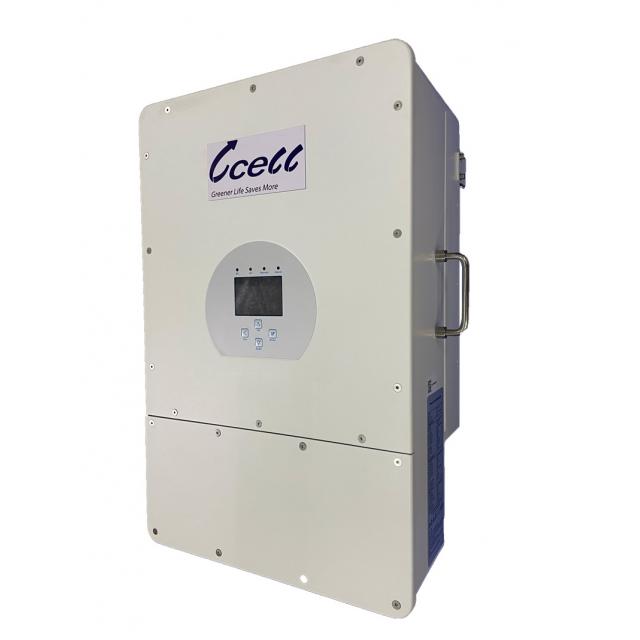

SUN-15K-SG01LP3 Hybrid Inverter
Quick Details:
Model: SUN-15K-SG01LP3
Battery Type: Lead-acid or Lithium
Battery Voltage Range (V): 40-60V
Max. Charging Current (A): 240A
Max. Discharging Current (A): 240A
Charging Curve: 3 Stages/Equalization
Charging Strategy for Lithium Battery: Self-adaption by BMS
Feature and Benefits:
• 48V low voltage battery,transformer isolation design
• 6 time periods for battery charging/discharging
• Max. charging/discharging current of 240A
• Frequency droop control,Max. 16pcs parallel
• DC couple and AC couple to retrofit existing solar system
• Support storing energy from diesel generator
Application:
• Domestic appliance：fan,lamp,rice cooker, etc.
• Office equipment：computers, printers, etc.
• Electronic communications: DVD, monitoring devices, communication stations, etc.
• Electric tools: electric drill, punching machine, water pump, etc.
• Vehicle and ship equipment: ambulances, ships, traffic lights, etc.
• Emergency power supply: standby power supply
Specification:
| Model | SUN-15K-SG01LP3 |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium |
| Battery Voltage Range (V) | 40-60V |
| Max. Charging Current (A) | 240A |
| Max. Discharging Current (A) | 240A |
| Charging Curve | 3 Stages/Equalization |
| Charging Strategy for Lithium Battery | Self-adaption by BMS |
| PV String Input Data | |
| Max. DC Input Power (KVA) | 18.72 KVA |
| PV Input Voltage (V) | 450V (140V-800V) |
| MPPT Range (V) | 140V-700V |
| Start-up Voltage (V) | 160V |
| PV Input Current (A) | 25A+12.5A |
| No. of MPPT Trackers | 2 |
| No. of String Per MPPT Tracker | 2+1 |
| AC Output Data | |
| Rated AC Output Power (KVA) | 14.50 KVA |
| Max. AC Output Power (KVA) | 16.00 KVA |
| Peak Power (off grid) | 2 times of rated power, 10S |
| AC Output Rated Current (A) | 17.4A |
| Max. AC Current (A) | 19.1A |
| Max. Continuous AC Passthrough (A) | 60A |
| Output Frequency and Voltage | 50/60Hz; 230/400VAC (Three Phase) |
| Grid Type | Three Phase |
| Current Harmonic Distortion | THD<3% (Linear load<1.5%) |
| Certifications and Standards | |
| Grid Regulation Safety Regulation | UL1741, IEEE1547, RULE21,VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727 IEC62109-1, IEC62109-2 |
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 CLASS B |
| General Data | |
| Operation Temperature Range (°C) | From -25°C to 60°C, >45°C Derating |
| Cooling | Smart cooling |
| Noise (dB) | <30dB |
| Communication with BMS | RS485, CAN |
| Weight (kg) | 45 |
| Size (mm) | 420 X 656 X 281 |
| Protection | IP65 |
| Installation | Wall-mounted |
