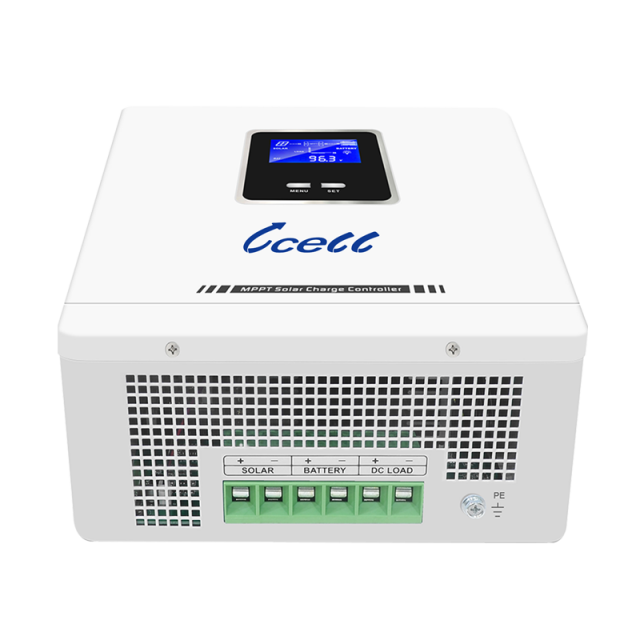

Solar MPPT Controller
  • Solar MPPT Controller
  • Solar MPPT Controller
  • Solar MPPT Controller

Solar MPPT Controller

Recommendation Rate:

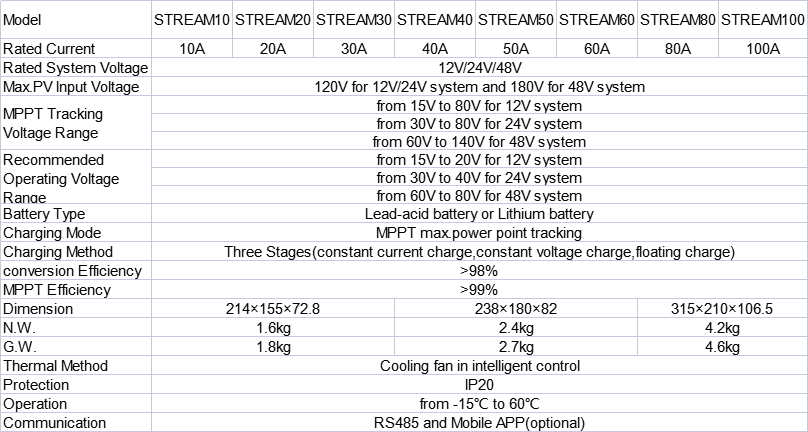

Quick Details:


Rated Current: 10A,20A,30A,40A,50A,60A,80A,100A

Rated System Voltage: 12V/24V/48V

Max.PV Input Voltage: 120V for 12V/24V system and 180V for 48V system

Thermal Method: Cooling fan in intelligent control

Protection: IP20

Operation Temperature: from -15℃ to 60℃

Communication: RS485 and Mobile APP(optional)

Feature and Benefits:

• MPPT tracking efficiency can reach or even exceed 99%

• Wide PV input voltage range,convenient for system configuration

• Multiple working modes can be selected according to the different working occasions.

• Support Lead acid battery and lithium battery

• Unique Lithium battery activation function

• Various protection functions

• RS485 communication and mobile APP(optional)
