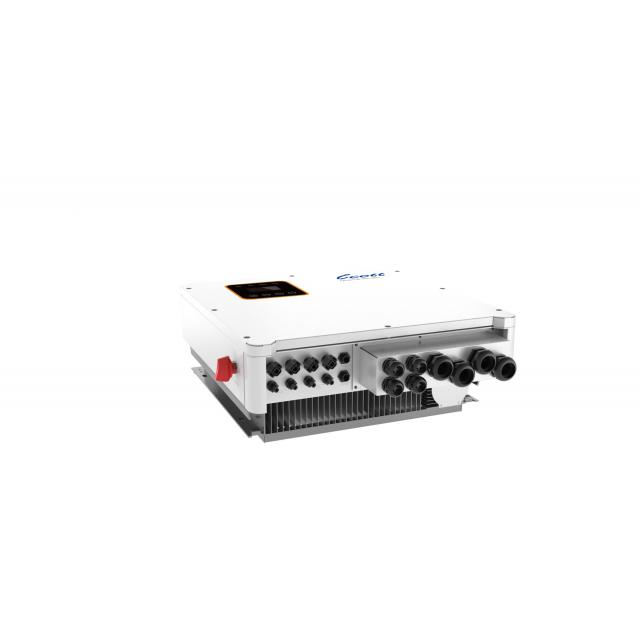

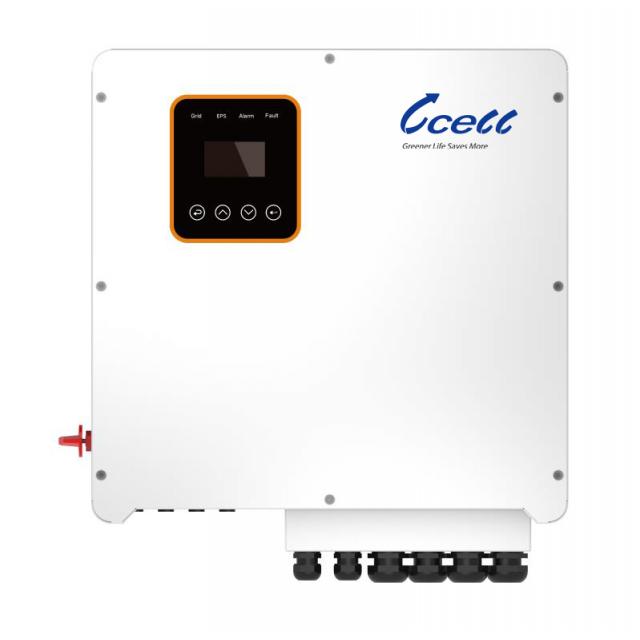

VHF8.8K Hybrid Inverter

Hybrid Inverter
Recommendation Rate:

Quick Details:

Model: VHF8.8K

Max. power (KW): 10.4

Max. DC voltage (V): 1000

MPPT voltage range (V): 180-850

Max. input current of single MPPT (A): 12.5

MPPT tracker/strings: 2/1


Feature and Benefits:

•  Compatible with Lithium and Lead-acid batteries

•  Support diesel generator input source

•  IP65 protection, low noise <35dB

•  Battery reverse connection protection, anti-power control function

•  Input power source priority can be set by users

•  Support full power discharge, automatic management of battery charge and discharge


Application:

•  Domestic appliance:fan,lamp,rice cooker, etc.

•  Office equipment:computers, printers, etc.

•  Electronic communications: DVD, monitoring devices, communication stations, etc.

• Electric tools: electric drill, punching machine, water pump, etc.

•  Vehicle and ship equipment: ambulances, ships, traffic lights, etc.

•  Emergency power supply: standby power supply


Specification:


ModelVHF8.8K
PV Input Data
Max. power (KW)10.4
Max. DC voltage (V)1000
MPPT voltage range (V)180-850
Max. input current of single MPPT (A)12.5
MPPT tracker/strings2/1
Battery Input Data
Battery voltage range (V)125-600
Max. charging voltage (V)600
Full battery voltage (V)210
Max. charge/discharge current (A)40
Battery typeLithium or Lead Acid
CommunicationCAN/RS485
AC Output Data
Rated output power (KVA)8.8
Max. output current (A)12.7
Grid voltage/range (V)400/360-440
Frequency (Hz)50/60
Power factor0.8lagging-0.8leading
THDi<3%
AC output topology3W+N+PE
Grid typeThree phase
General Data
Operation temperatureFrom -25℃ to 60℃
Ingress protectionIP65
MPPT efficiency99.50%
CoolingNatural
Dimension W x D x H (mm)530 x 200 x 600
Weight (kg)29
Certificates and Standards
Safety standardIEC/EN62109-1/-2, IEC/EN62477-1
EMCIEC/EN61000-6-1, IEC/EN61000-6-3
