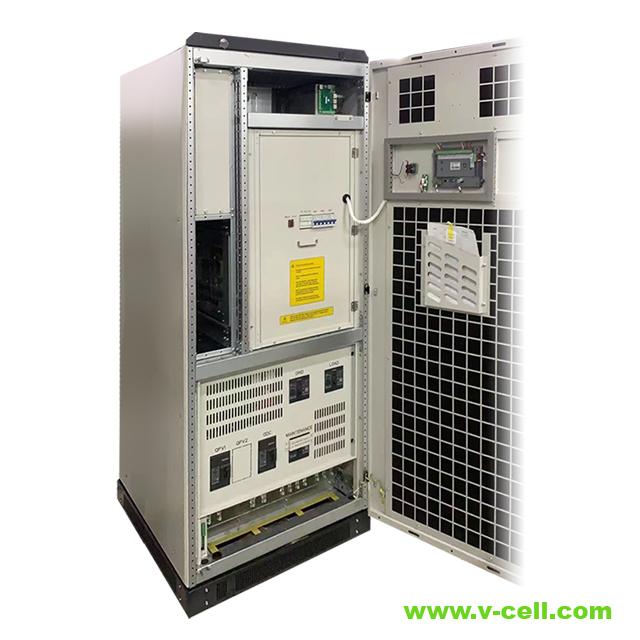

VMPS040 Hybrid Inverter
Hybrid Inverter
Recommendation Rate：
Quick Details:
Model: VMPS040
Rated output power (KVA): 40
Rated voltage (V): 400
Rated current (A): 43
Rated frequency (Hz): 50/60
Feature and Benefits:
• Various working modes can be set flexibly;
• MPPT controller modular design, easy to expand;
• Support simultaneous access of load, battery, grid, diesel and PV;
• Built-in maintenance bypass switch, improve system availability;
• Built-in isolation transformer for high load adaptability;
• Smooth switching between on and off grid.
Key Characteristics:
Suitable for on-grid & off-grid; Suitable for Lead acid battery & Lithium battery; Three phases.
Specification:
| Model | VMPS040 |
| AC Output Data (Off-grid) | |
| Rated output power (KVA) | 40 |
| Rated voltage (V) | 400 |
| Rated current (A) | 43 |
| Rated frequency (Hz) | 50/60 |
| AC Output Data (On-grid) | |
| Rated output power (KVA) | 40 |
| Rated voltage (V) | 400 |
| Rated current (A) | 43 |
| Voltage range (V) | 320-460 |
| Rated frequency (Hz) | 50/60 |
| Frequency range (Hz) | 45-55/55-65 |
| THDi | <3% |
| Power factor | 1 lagging - 1 leading |
| AC connection | 3 phase |
| Transformer Ratio | 100/400 |
| PV Input Data | |
| Max. power (KW) | 60/120 |
| Max. DC voltage (V) | 1000 |
| MPPT voltage range (V) | 250-850 |
| Battery Input Data | |
| Battery voltage range (V) | 250-850 |
| Max. charging power (KW) | 60-120 |
| General Data | |
| Operation temperature | From -30°C to 55°C |
| Ingress protection | IP20 |
| Cooling | Air cooling |
| Dimension W x D x H (mm) | 800 x 800 x 1900 |
| Weight (kg) | 620 |
| Certificates and Standards | |
| Safety standard South Africa NRS097-2-1-2017 Packistan & India IEC61727,62116,61683 EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4 | |
| Communication | |
| Interface | RS485/RS232/CAN |
